DESCRIPTION

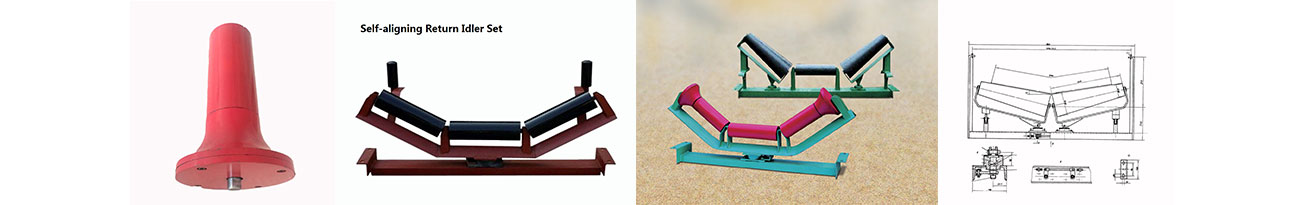

Self-aligning Idler sets comprise a stationary support, an idler frame and several idlers and help keeping the conveyor belt centered on the conveyor.
Self-aligning idlers are classified into carrying self-aligning idlers, troughing self-aligning idlers, guide self-aligning idlers, flat self-aligning idlers and side self-aligning idlers.
|
Pipe diameter (mm) |
51, 60, 63.5, 76, 89, 108, 127, 133, 159 |
|
Pipe Length (mm) |
190, 200, 240, 250, 305, 315, 375, 380, 455, 465, 525, 530 |
|
Pipe thickness (mm) |
1.8, 2.0, 2.2, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0 |
|
Shaft material |
A3 (45#steel) |
|
Shaft diameter (mm) |
20, 25, 30, 35, 40 |
|
Bearing brand |
C&U, HRB, ZWZ, LYO, NWH, SKF, NSK |
|
Bearing type |
deep groove ball bearing with C3/C4 |
|
Bearing size |
6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308 |
|
Bearing housing |
Trinity, special customized for clients |
|
Bearing housing type |
pressed housing, cast iron bearing housing, polymer housing |
|
Seal structure |
Multiple labyrinth seal, water proof, dust proof |
|
Seal |
general use(nylon), Double labyrinth seal,TR seal |
|
Grease |
Lithium grease lubricant |
